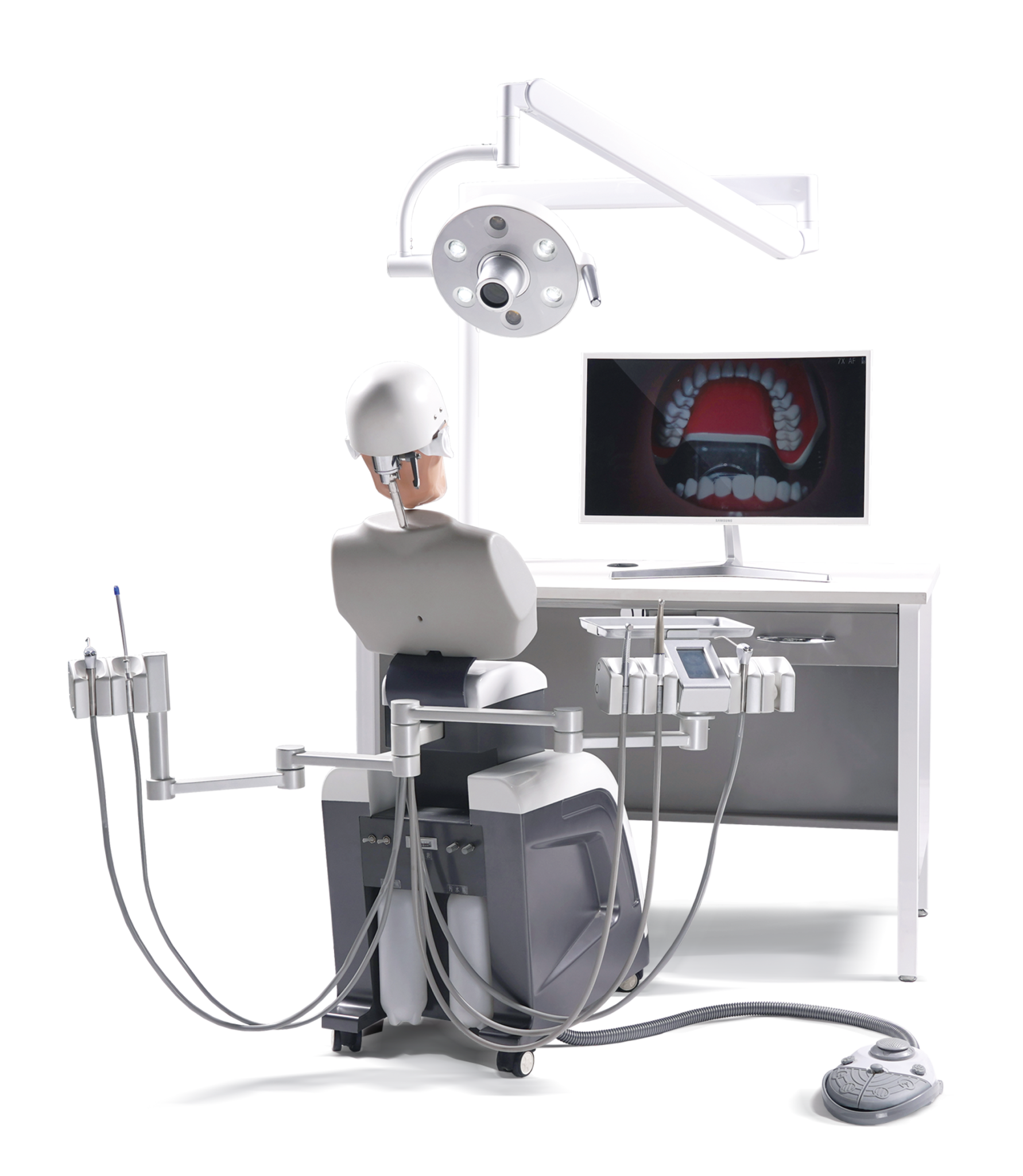

Para simular el entorno clínico más realista.

Main features:

• Full motorized control of the head mold:

  • The hanger lifts with the shoulder body as whole, easy to operate.
  • Pitch angle: 0°-90°.
  • Lifting height: 150±2mm.


• LCD display: 4 inch LCD screen, LCD display, touch operation is more convenient.


• Individualized Instrumentation Unit configuration: Flexible instrumentation unit configuration to simulate four-handesd operation, left- and right-handed instrumentation units are interchangeable for left-handed users.


• Composite foot switch: Multi-function compliant footswitch, freeing the user’s hands.


• Multiple safety protection functions: Chair interlock, one key master switch, cell phone safety protection.


• Multi-media teching camera parameter:
  • Adopt Sony sensor, suport full HD 1080P video recording.
  • Digital zoom 2 times, the maximum magnification is 30 times.
  • 450mm-1000mm autofocus range.
  • Support handheld remote control.
  • 4 LED white light source + 2 yellow light source, inductive switching.
  • Adjustable illumination: 8000-30000LX7.
  • Color Temperature: 5000 Ks 10%.


• Simulated head with shoulder body:

  • Anterior ankle channel: 30°.
  • Lateral ankle channel inclination: 15.
  • Distance between lateral ankle heads: 106mm.
  • Bonwill triangle: 106 mm.
  • Opening distance: 50 mm adjustable.


• Unidad de instrumentación: XH701 standard equipped with master instrumentation unit to save space (optional assistant position instrumentation unit).


• Oral light: Sensor-type LED oral light provides the most ideal illumination for teaching operation.


• Instrument Tray: Place <2 kg instruments, can directly hold instruments for sterilization, simple and convenient.

Oral digital evaluation and basic manipulation simulation system.

Product Overview:

• Effective scanning range: 20 mm (X) 20 mm (Y) 10 mm (Z).
• Scanning accuracy: ≤0,025 mm.
• Scanning range: Single tooth: 20 (mm) X 20 (mm) X 20 (mm) Full arch: 85 (mm) X 65 (mm) X 40 (mm).
• Scanning method: HD camera + Blue light source.
• Scanning time: 15s
• Dental fixating blocks: 3 sets, 28 pieces/set (can meet the requirements of scanning and fixation of imported teeth at home and abroad in the current market).
• Basic Manipulation Training Blocks: 10
• Online Courses: The factory comes with system defaults, wich can be updated and added u pon request.

Dental digital evaluation and manipulation training system is a combination of hardware and software, consisting of scanning system, computer system software system, laser color printer, and is applied to dental teaching evaluation. The system is based on digital technology and uses a non-contact scanning system to scan in three dimensions through the basic morphology preparation and simulated tooth preparation morphology. At the same time, it was compared with the standard tooth preparation morphology data to bring fair and objective evaluation results for the digital assessment of experimental teaching in dentistry.

Evaluation principle:

This product adopts non-contact scanning method, based on coding structured light and high-definition binocular acquisition system for high-precision image acquisition and 3D model restoration. Coding structured light three-dimensional measurement technology is an active triangulation technology, the basic principle is to control the light source to the surface of the object to be measured to project light, light on the surface of the object to form a point, line, surface three kinds of shapes, can be captured by the imaging system, and then according to the calibration of the spatial direction and the position parameters obtained, the three-dimensional shape of the object in the space can be obtained by the use of triangulation principle. Based on the comparision of the obtained standard three-dimensional morphology with the three-dimensional morphology of the preparatory body, an objective data difference can be evaluated by computer analysis.
